How Does a Scanner Read a Document? And How It Works

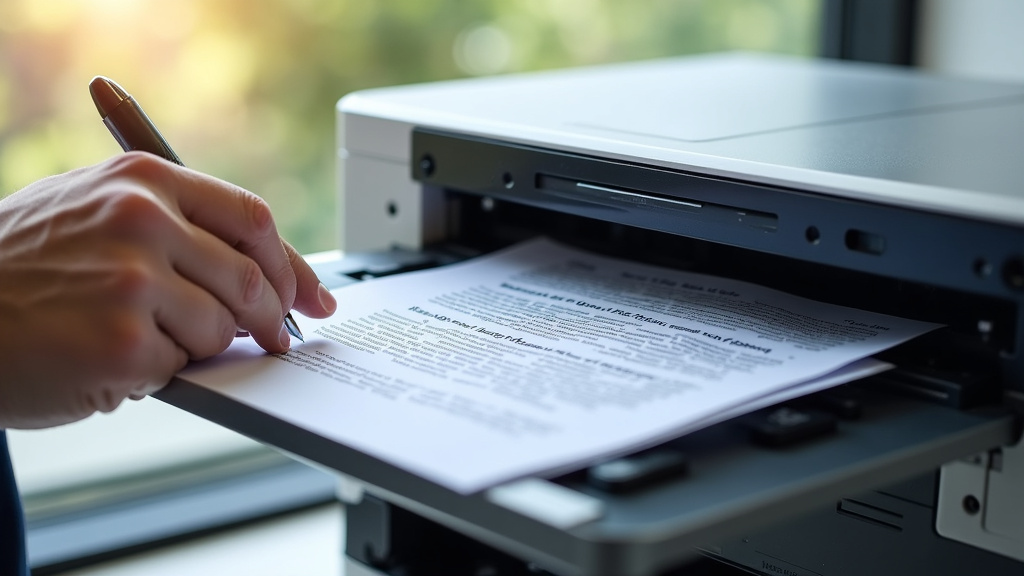

How a Scanner Sees Your Document
A scanner works by converting the light and dark patterns on your paper into a grid of digital dots. It’s a process of translating the physical world of ink and paper into a language your computer understands—a language of ones and zeros. At its core, every scanner follows a simple three-step dance: illuminate, capture, and convert.
The Step-by-Step Journey of a Page
Let’s follow a single piece of paper on its trip through a flatbed scanner, the kind you probably have at home. This process is incredibly fast, often taking just a few seconds.
1. Illumination: Lighting Up the Page
The moment you press the scan button, a bright light source (like an LED or a cold cathode fluorescent lamp) turns on. This light shines in a thin, even line across the glass. It then moves smoothly down the length of your document, like a spotlight sweeping over a stage. The goal is to make every detail of your document visible to the sensor.
2. Capture: Recording the Reflection
As the light moves, a sensor array sits perfectly still on the other side of the glass. This is the scanner’s “eye.” Most modern scanners use a sensor called a CCD (charge-coupled device) or a CIS (contact image sensor). It doesn’t see the whole page at once. Instead, it captures one very thin, horizontal line of the document at a time, over and over, as the light bar passes.
3. Conversion: From Light to Digital Dots
This is the magic part. The sensor measures how much light bounces back from each tiny spot on your page. A dark area (like black text) absorbs most of the light and sends back very little. A white area reflects almost all the light. The scanner converts these varying light levels into numerical values.
These numbers form a grid, or a raster image. Think of it like a microscopic mosaic made of millions of colored tiles. Each tile is a pixel. Together, they recreate the exact appearance of your original document.
Two Main Technologies Behind the Scan
While the basic process is similar, the heart of the machine—the sensor technology—differs. The two main types you’ll encounter are CCD and CIS. Understanding the difference helps explain why some scanners are better than others.
| Feature | CCD (Charge-Coupled Device) Scanners | CIS (Contact Image Sensor) Scanners |
|---|---|---|
| How It Works | Uses a complex lens system to focus a reflected image onto the sensor. It’s like a tiny digital camera. | Uses a row of tiny sensors and LEDs right up against the glass. No complex lenses needed. |
| Image Quality | Generally produces sharper images with better depth of field. Can capture more detail from books or uneven surfaces. | Good for flat documents. Can struggle with depth and may produce slightly less accurate colors. |
| Physical Size | Requires more space for the optical components, making scanners thicker. | Allows for very thin, compact scanners and all-in-one printers. |
| Common Use | Found in higher-end photo scanners, professional document scanners, and many all-in-one printers. | Very common in budget all-in-ones, portable scanners, and simple home office devices. |
For most everyday tasks like scanning a form or a photo for email, a CIS scanner works perfectly well. If you’re archiving precious family photos or need the highest fidelity, a CCD scanner is the professional’s choice.
Color vs. Black & White: How Scanners Handle Color
A scanner doesn’t just see “light” and “dark.” It sees color, or the lack of it, using filters. This is where the concept of a color depth or bit depth comes in. It determines how many shades and colors the scanner can distinguish.
Grayscale Scanning
When you choose “grayscale” or “black and white,” the scanner still uses its full-color sensor. But it then averages the incoming light to create a shade of gray. A higher bit depth means more shades of gray, leading to smoother transitions and better detail in photos. Think of it as going from a simple 10-shade pencil sketch to a detailed charcoal drawing with hundreds of tones.
Full-Color Scanning
For color, the scanner typically uses red, green, and blue (RGB) filters. It scans the document three times in rapid succession—once for each color channel. The data from these three scans is then merged by software to create the final full-color image. This is similar to how your TV creates millions of colors from just red, green, and blue pixels.
According to scanning guides from Colorado State University, a color depth of 24-bit (which gives you about 16.7 million possible colors) is the standard for high-quality, photo-like scans.
Resolution: The Secret to a Clear Scan
You’ve probably seen numbers like 600 dpi or 1200 dpi on scanner boxes. DPI stands for “dots per inch.” It measures the scanner’s resolution, or how many individual pixels it captures for every inch of the original document.
Higher DPI means more detail, but also much larger file sizes. Choosing the right resolution is about balance.
Choosing the Right DPI for Your Task
- 72-150 dpi: Good for emailing documents or viewing on a screen. Keeps files small.
- 300 dpi: The sweet spot for most documents and text. It’s sharp enough for printing a copy of the original.
- 600 dpi and above: Reserved for high-quality photo scanning, archiving, or when you plan to heavily edit the image later.
The National Institute of Standards and Technology (NIST) suggests that for standard office documents, 300 dpi provides the best balance of quality and manageable file size.
From Scan to File: The Software’s Role
The hardware captures the raw data, but the software turns it into the file you can use. When you scan, you’re usually saving into one of several common formats.
Common File Formats
JPEG is great for photos and color images. It uses compression to make file sizes smaller. However, each time you save a JPEG, it loses a little quality. PNG is another option for images, offering lossless quality but often larger files. For documents with text, PDF is king. It preserves layout and fonts perfectly. Many scanners can also do OCR (Optical Character Recognition) during the scan, turning the image of text into actual, editable text inside a Word document or searchable PDF.
What About a Scan from Your Phone?
Your phone’s camera doesn’t physically move like a flatbed scanner. Instead, its app uses clever software to mimic the process. It detects the edges of the document, flattens the image to correct for perspective, and adjusts the contrast. The underlying principle is still the same: it’s capturing light and turning it into a digital grid of pixels, just in one quick snapshot instead of a line-by-line sweep.
A Quick Checklist for Your Next Scan
Want the best results? Run through this quick mental list before you hit the button.
- Is the glass clean? Dust and smudges show up as annoying specks in your scan.
- Document placed correctly? Align it with the corner markers on the glass.
- Lid closed gently? This flattens the document and prevents light leaks.
- DPI set appropriately? Use 300 dpi for documents, 600+ for photos.
- File format chosen? PDF for documents, JPEG for photos.
- OCR needed? Check the box if you want to search or edit the text later.
The technology inside your scanner is a brilliant blend of physics, electronics, and software. It’s designed to be invisible, doing its complex job in seconds while you wait. Now, when you press that “Scan” button, you’ll know exactly how your paper is becoming digital—one line of light at a time.
Conclusion
You now know how a scanner takes your physical page and turns it into a digital file. It illuminates your document, captures the reflected light line by line, and converts that light into a grid of pixels. From there, software saves it as a PDF, JPEG, or even editable text. The key takeaways are simple: keep your glass clean, match your DPI to the task, and pick the right file format. The next time you hit that scan button, you’ll know exactly what’s happening inside the machine. Try scanning a test document today at 300 dpi and see how clear the results are.
Frequently Asked Questions
Will scanning a document damage the original?
No, scanning is a completely safe process. The light used by a scanner is low-intensity and does not fade or harm your paper, ink, or photos. You can scan the same document as many times as you need without any loss to the original.
Why do my scans look blurry or grainy?
Blurry scans usually come from a low DPI setting or a dirty scanner glass. Try setting your resolution to at least 300 dpi for documents and 600 dpi for photos. Also, wipe the glass with a soft cloth before scanning to remove dust and smudges.
What is the difference between a scanner and a photocopier?
A scanner creates a digital file on your computer, while a photocopier prints a physical copy. Many modern all-in-one printers combine both functions. You can also scan on a photocopier, but the main purpose is still to create a paper copy, not a digital one.
Can I scan documents without a computer?
Yes, some scanners and all-in-one printers can scan directly to a USB drive, email, or cloud storage without a computer. Portable scanners and many newer models offer this feature. Phone scanning apps like Adobe Scan or Google Drive can also capture documents without a traditional scanner.
How long do scanned digital files last?
Digital files can last indefinitely if stored properly on a reliable hard drive, cloud service, or backup system. However, file formats and storage media do degrade over time. It’s a good idea to back up important scans in at least two places and check the files every few years.
